AKSUNGURAKSUNGUR
HIGH PAYLOAD
CAPACITY UAS

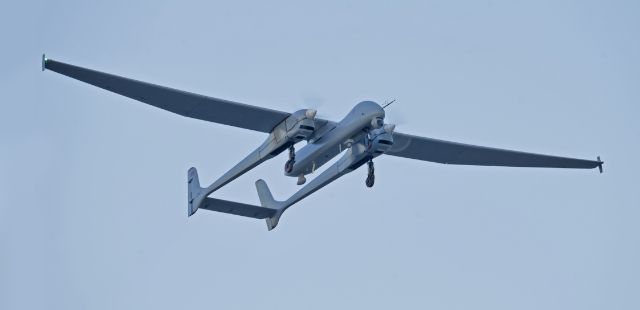

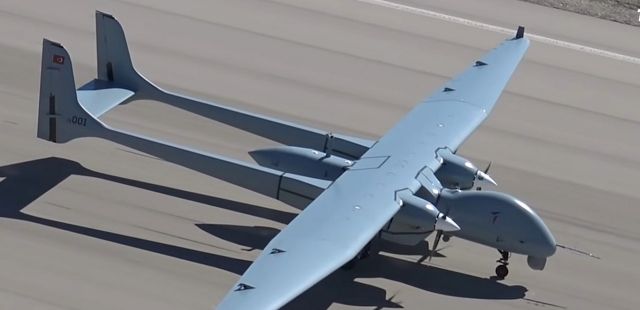

ANKA-AKSUNGUR is a Medium Altitude Long Endurance (MALE) class UAV System, capable to perform day and night Intelligence, Surveillance and Reconnaissance (ISR) and strike missions with EO/IR, SAR and SIGINT payloads, and a variety of air to ground weapons. ANKA-AKSUNGUR is powered by two PD-170 twin-turbocharged diesel engines enabling long endurance operations up to 40,000ft.

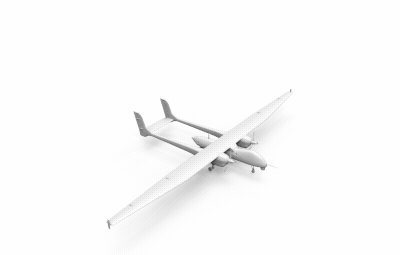

3D Model Loading
FEATURES
Redundant Flight Control System
Redundant Automatic Take - Off and Landing System
Redundant Electrical Power Generation
Redundant High Data Rate Digital Datalink
Emergency Base Landing Capability
Return Home and Land Capability for Total Link Loss Emergency

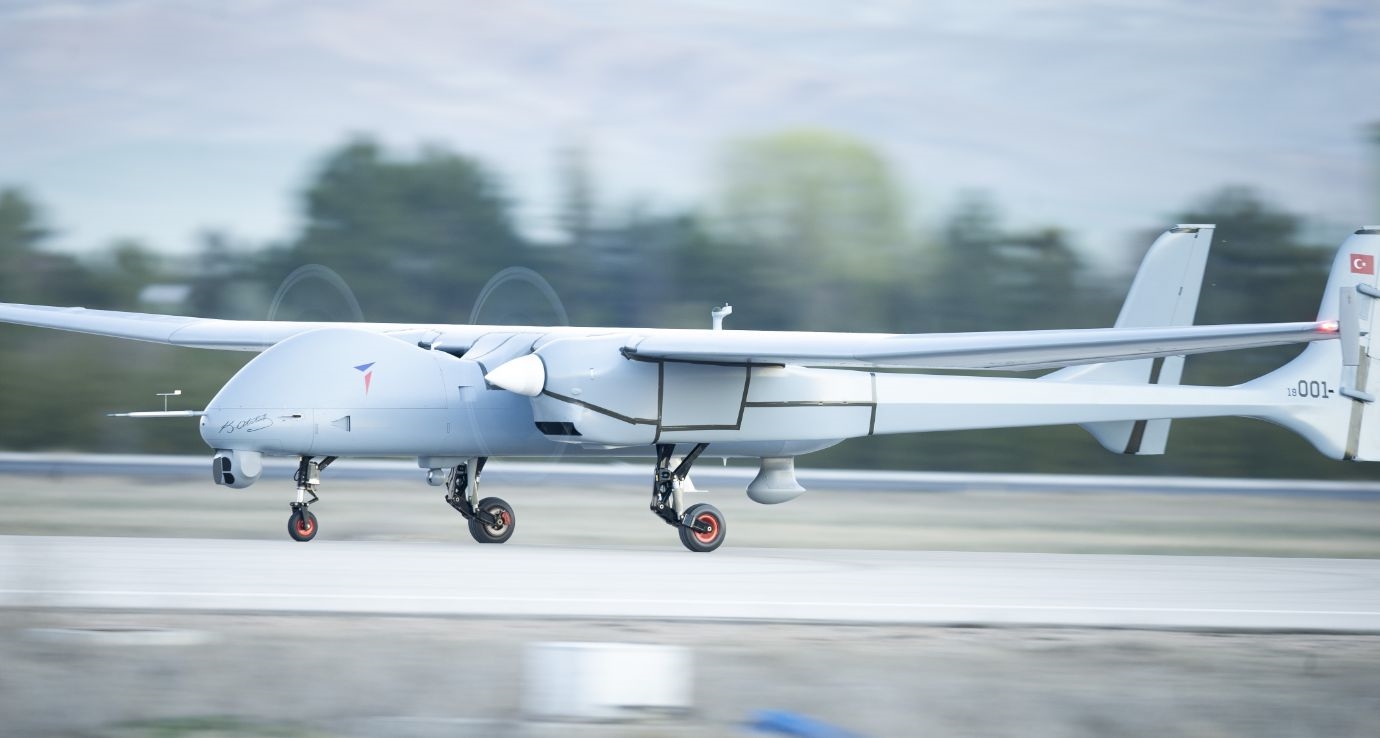

Retractable Landing Gear
Mission Long de-icing Performance


TECHNICAL DATA
Dimensions / Weight
Performance
Engine
Weapons Options
Wing Span
24 m
Horizontal Length
11.6 m

(38 ft)

Maximum Take-Off Weight
3300 kg
Attack/Maritime Patrol Mission
With 750 kg of External Load

12 hours at 25 at kft

Signal Intelligence Mission
With 150 kg of Payload

24 hours at 35 at kft

Engine Type
PD-170

Dual Turbo Diesel

Engine Power
2x170 HP

(SL, ISA)

3 hardpoints on each wing with 500 kg, 300 kg and 150 kg capacities
TEBER-81
(Laser Guided Mk-81)
TEBER-82
(Laser Guided Mk-82)
LUMTAS
MAM-L
Cirit
MAM-C
HGK-3
(Precision Guidance Kit)
KGK (82)
(Wing Assisted Guidance Kit)
Small Diameter Bomb
